Rollaway Nest Box System for Eggmobiles
Rollaway Nest Box System for Eggmobiles
Final VAT treatment is confirmed with the quotation based on the customer's country and VAT status.

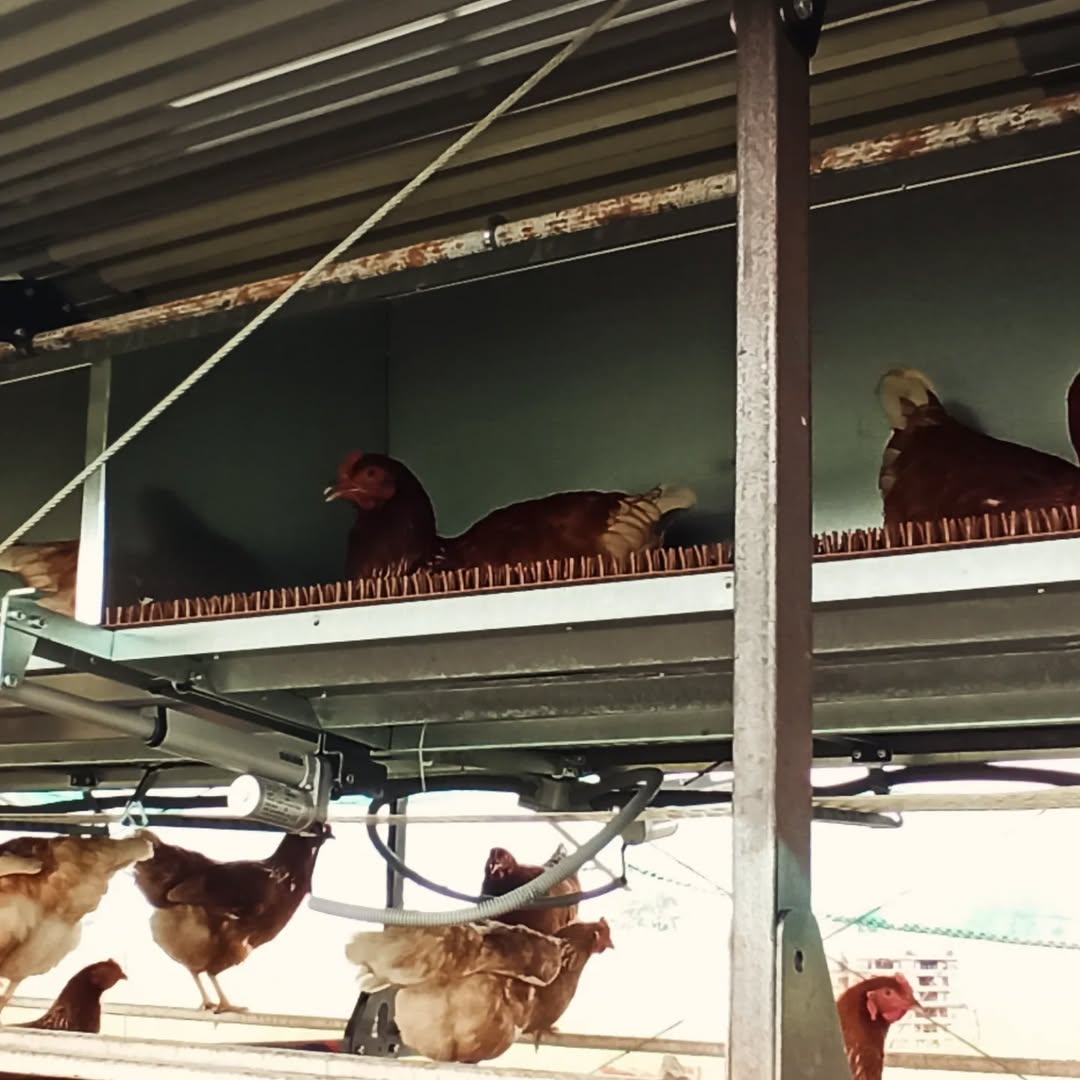

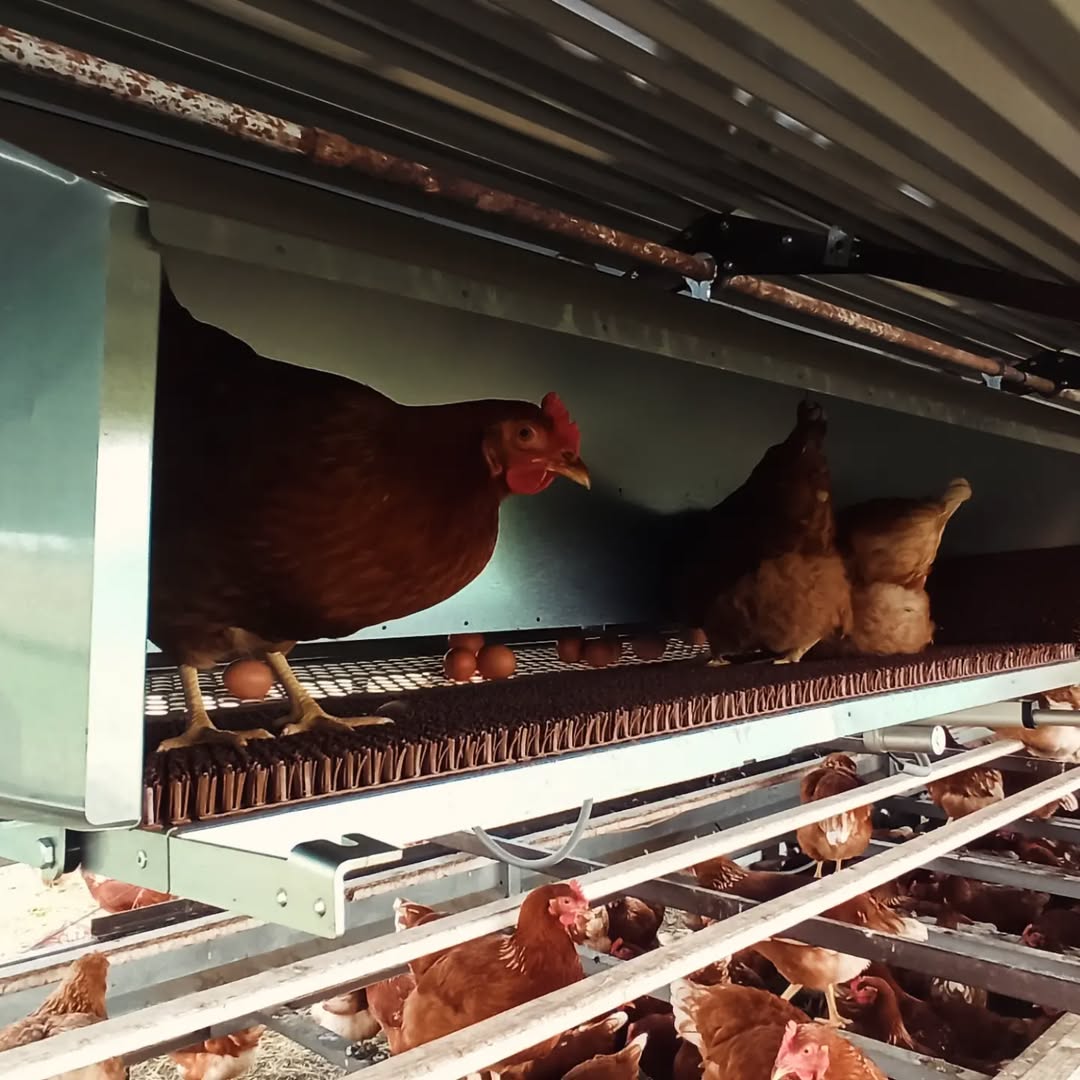

Built for pasture-based egg production, our rollaway nest box system keeps eggs clean and protected while making collection fast and ergonomic. Slanted rollaway floors guide eggs into a protected tray, and a central conveyor belt brings them to your collection point—no dirty nests, no cracked eggs, less labor.
- Capacity per segment: up to 120 hens (EU conventional/free-range) or ~80 hens (EU organic).
- Clean eggs, less breakage: slanted rollaway floors move eggs away from hens into a protected collection area.

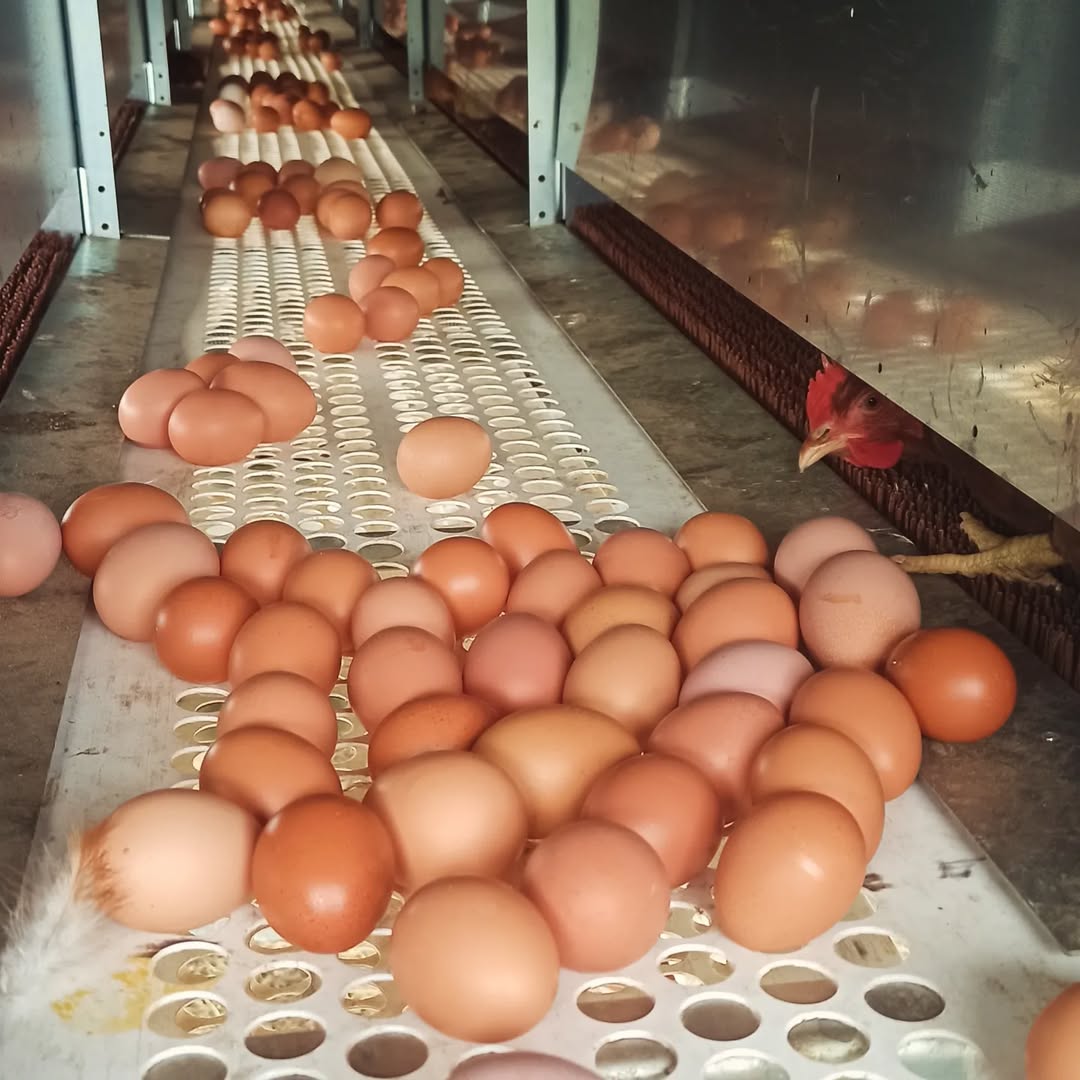

- Fast collection: central conveyor saves steps and streamlines workflows in the field.
- Easy to level: suspended, self-leveling design stays functional on rough pasture.
- Night lockout: tilting floors can be automated to exclude hens at night for cleaner nests.
- Modular & customizable: sold in 120 cm segments (exact nest floor area per segment: 1 m²) to fit Eggmobiles or stationary coops.
- Flat-pack shipping: ships as a flat-pack kit on two Euro pallets with clear video instructions.
Lead times and pricing
- Made to order; typical production time: ~ 6 weeks.
- Price shown is for one nest box module (1 segment).
Watch: Product Overview
See how the rollaway nest box works, what’s included, and how to size your system.
What’s included
- All metal and plastic components for the nests
- Nest mats and internal flooring
- Conveyor belt system for egg collection
- Hardware and fasteners for assembly
- Red tarp flaps for shading nesting space
- Step-by-step video instructions
What not included (what you have to supply)
- Pivot tube (Ø 33.7 × 3 mm steel tube; galvanized or painted)
- Wooden perches (approx. 5 × 3 cm battens)
- Electric actuators, timers, and control electronics (optional, to suit your setup)
- External frame or brackets for mounting it onto the ceiling of an egg mobile (every DIY egg mobile is different)

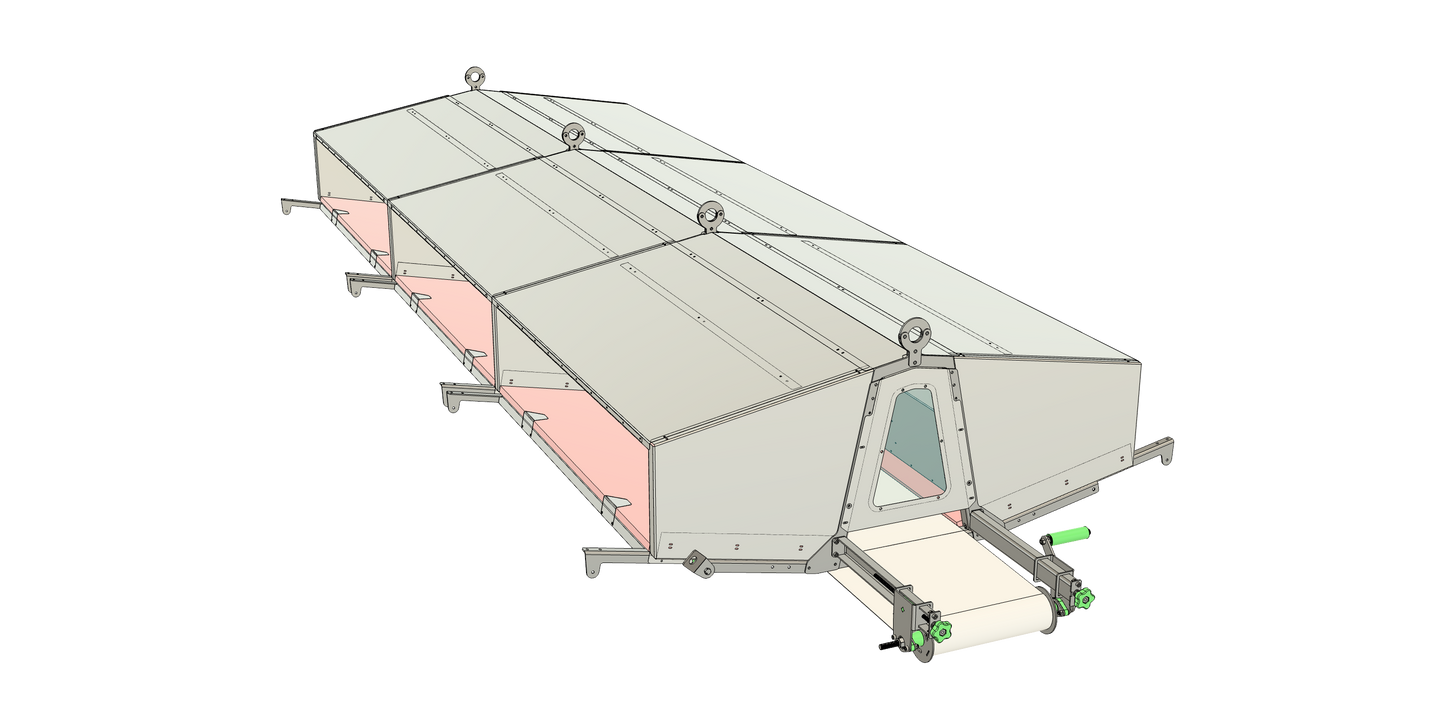

Dimensions
Total system length depends on segment count (includes front collection space and rear pulley):
| Segments | Total length | Hens (organic / conventional) |
|---|---|---|
| 2 | 2793 mm | 160 / 240 |
| 3 | 3902 mm | 240 / 360 |
| 4 | 5011 mm | 320 / 480 |
| 5 | 6120 mm | 400 / 600 |
| 6 | 7229 mm | 480 / 720 |
Design tips for Eggmobiles
For easiest install and maintenance, we recommend a gable roof with two sloping sides that meet at a central ridge, as this will allow optimal space usage. One-sided (Ridgedale-style) roofs can work but space is tight and service access is limited.
Example build from a customer in Sweden: Varva.co
Compliance note
Each roll away nest box segment provides exactly 1 m² of nest floor area. Under EU rules, that is enough for up to 120 hens in conventional and free-range systems (max. 120 hens per 1 m² of group nest, Council Directive 1999/74/EC) or about 80 hens in organic systems (120 cm² of shared nest per hen, Regulation (EU) 2020/464). These hen numbers assume the EU minimum nest space. National rules and some organic certifiers are stricter, so check your local regulations and certifier requirements to size the total nesting area for your flock.
Built for modern regenerative farms
This roll away nest box system fits new builds and upgrades alike, minimizing shipping costs while maximizing reliability, hygiene, and daily efficiency.
Contact us for sizing help and lead-time confirmation.
Nest Box Segments Calculator
How many nest box segments do you need?
Each 120 cm segment gives exactly 1 m² of nest floor area. Enter your flock and the standard you farm to, and this works out how many segments you need, how many systems they split into, and whether a run will fit your eggmobile.
Regulatory minimum
Nest floor area
Assembled length
Density achieved
Capacity at this standard
Assembled layout, to scale
Assembled length runs 1109 mm per segment plus a fixed 575 mm for the front collection space and the rear pulley. The allowance is drawn as one hatched band at the front for clarity; on the real unit it is split between the two ends.
Farming standards
Both figures below are legal minimums — your certifier or national implementation may be stricter, so confirm yours before ordering.
| Standard | Rule as written | Hens per m² | Hens per segment |
|---|---|---|---|
| EU organic Reg. (EU) 2020/464 |
120 cm² of common nest per laying hen | 83,3 | 83 |
| EU non-cage minimum Directive 1999/74/EC |
At least 1 m² of group nest per maximum 120 hens | 120 | 120 |
Made to order, roughly 6 weeks. Send us your segment count and coop dimensions and we will confirm lead time, freight, and the fit against your build.
Made to order. Lead time confirmed per order at this size. An order this large can take longer than our usual ~6 weeks to build. Send us your flock size and coop dimensions and we will confirm the lead time before you commit.
Nest boxes ship flat-pack on Euro pallets. This calculator sizes nesting area only - it does not size perch length, indoor floor space, pop-holes, or pasture area, which are governed by separate provisions of the same regulations.
